DH02ST

型号:DH02ST
规格:
市场价:0.00
优惠价:0.00
分享到:

分享到

  • 一键分享
  • QQ空间
  • 新浪微博
  • 百度收藏
  • 人人网
  • 腾讯微博
  • 腾讯朋友
  • 百度贴吧
  • 豆瓣网
  • 搜狐微博
  • QQ好友
  • QQ好友
    百度分享
  •




    1 .Auto Frequency Hopping When Noise.
    Frequency band:433Mhz,ISM ,the output power up to10DB,High receiver sensitivity -98DB.
    32 hopping channels,the channel frequency gap is 1Mhz.
    the transmission is encrypted, auto build communication network and pair. auto hopping when noise.
    32 sets of wireless MPG could be used at the same time in one room.

    2 enable key
    the enable key is used to enable the mpg for safety.


    3 Estop Function
    To improve work effiency and assure safety.

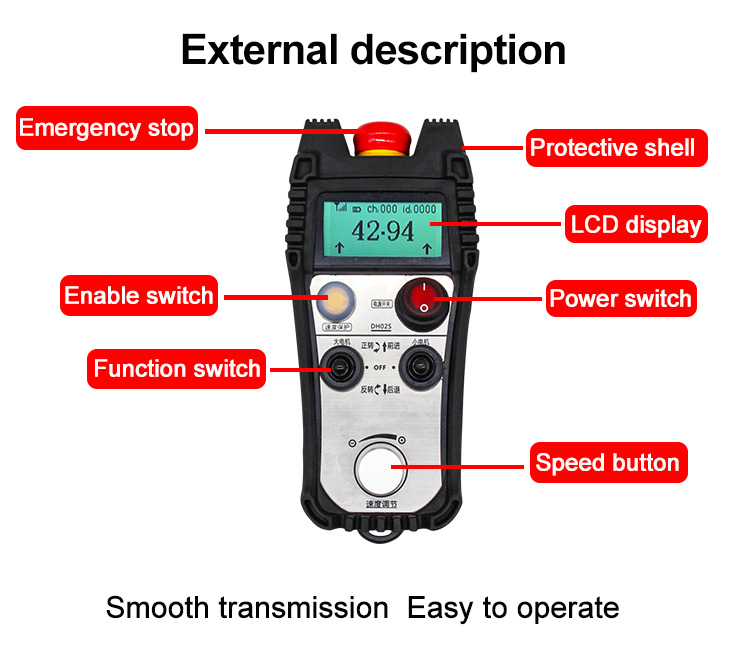

    4 LCD display
    The lcd display data with background light.Display the current work state of the cnc system.



    Parameter Description
    Frequency bands/td> ISM,433MHZ
    Supply voltage 2 AA batteries
    Wireless transmission distance 200 meter
    Function Key 1 key
    RF TX power 13DB
    Receiver sensitivity -115DB
    Material ABS、PC、aluminium

    DHO2TWireless device 1piece
    Wireless receiver 1piece
    Wiring row 2piece
    DH02T  manual 1book
    Package box size 235*225*85mm
    Weight 1kg



    More detail introduction,please walk to download center
