1、Applications
application on ncstudio cnc system.such as ncsutido8.202 etc.
2、Application circut
.jpg)

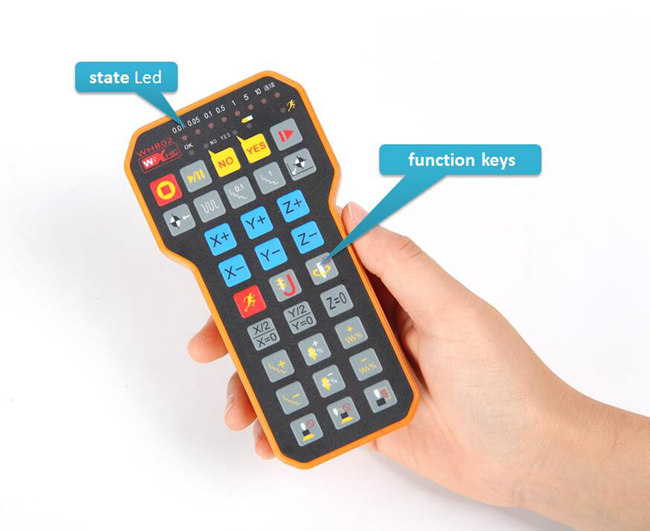

3、Product Overview
4、Key feature
1 Auto Frequency Hopping When Noise.
Frequency band:433Mhz,ISM ,the output power up to10DB，High receiver sensitivity -98DB.
32 hopping channels，the channel frequency gap is 1Mhz.
the transmission is encrypted， auto build communication network and pair. auto hopping when noise.
32 sets of wireless MPG could be used at the same time in one room.
2 Low power feature，the life is longer than 2 months with 2 AA batteries
3 Reliable and Stable Performance
The wheel gear of aluminium MPG is clear,the position is accurate
The ABS MPG is anti-impact and heat-resistant.
5、General Characteristics
| Parameter | Description |
| Frequency bands | ISM，443MHZ |
| Supply voltage | 2 AA batteries |
| Function Key | 31 Keys |
| Wireless transmission distance | 40 meter |
| RF TX power | 10DB |
| Receiver sensitivity | -98DB |
| Maximum axis | 3 axis |
| Material | ABS、PC |
6、Attachments
| WHB02 Wireless MPG | 1piece |
| USB receiver | 1piece |
| Driver disk | 1 disk |
| Guarantee card | 1 paper |
| user manual | 1 book |
| Package box size | 265*125*75mm |
| Weight |
0.7kg |
More detail introduction,please walk to download center
