MKX-V

型号:MKX-V
规格:184*127*30mm
市场价:0.00
优惠价:0.00
分享到:

分享到

  • 一键分享
  • QQ空间
  • 新浪微博
  • 百度收藏
  • 人人网
  • 腾讯微博
  • 腾讯朋友
  • 百度贴吧
  • 豆瓣网
  • 搜狐微博
  • QQ好友
  • QQ好友
    百度分享
  • 1、Applications

         MKX-V has 3 series:
            1. MK3-V:3 axis motion card.
            2. MK4-V:4 axis motion card.
            3. MK6-V:6 axis motion card.
         works with Mach3 CNC system under all windows platform


    2、Application overview

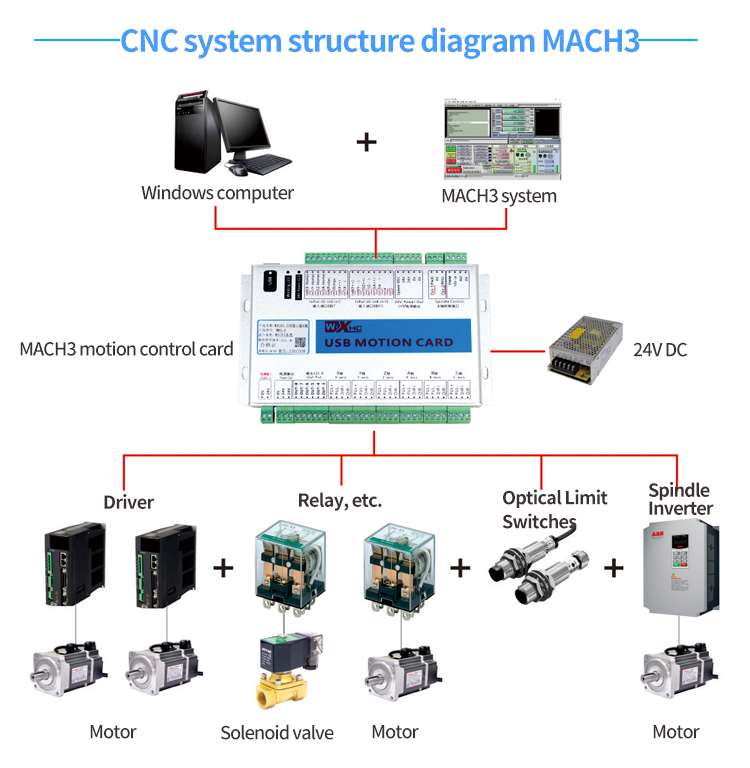

    3、Product overview




    4、Signal connection


    5、Key feature

        1.Standard usb device and work at all windows with usb hot plug.
        2.The card state is monitored.
        3.Support 6 axis to motion at the same time.
        4.Step Pulse frequncy Up to 2000khz,support servo and step motor driver.
        5.The usb state indication with led
        6.All io is isolated,anti-noise and stable performance
        7.Spindle control with PWM and step/pulse
        8.Aluminum shell,shield the interference.
        9.speed index function.
        10.power off and continue function

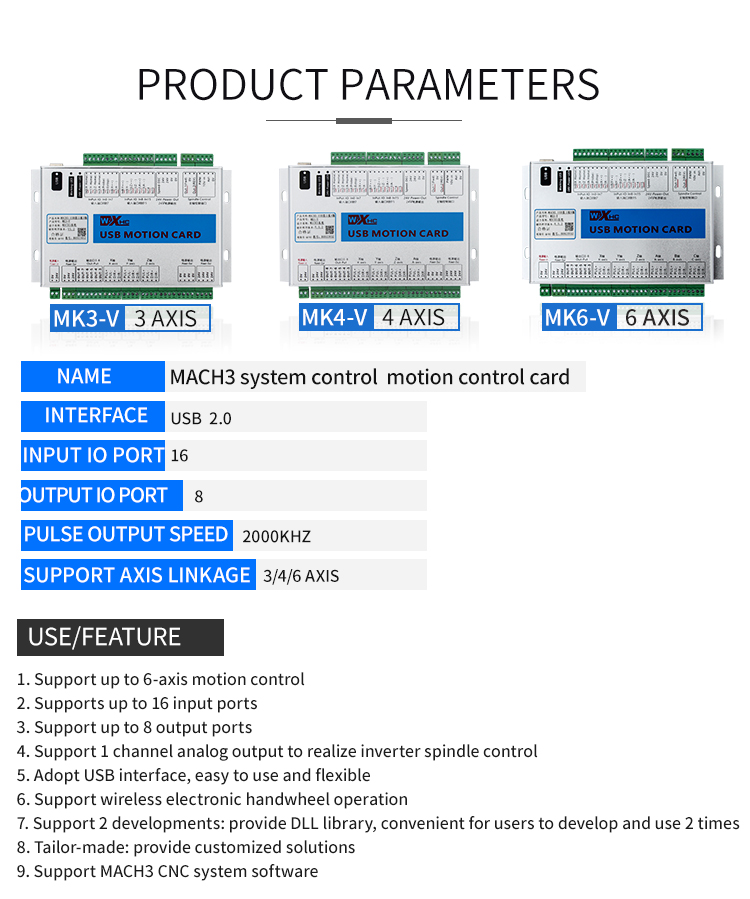

    6、General Characteristics

    Parameter Description



    Axis drive control:



     Isolated oc output  Voltage:5V,maximum load :20A
     type STEP/DIR
     Maximum Step frequency  2000KHZ
     Number of support axis MK3-V:3 axis
    MK4-V:4 axis
    MK6-V:6 axis
    Spindle control  Analog output voltage  0-10V
     Digital PWM output  5V,1KHZ,fill factor:%1-100%
     STEP/DIR Minimum frequncy:15Hz
    Maximum frequncy:4KHz
    8 digital output  Maxmimum load of output line  50mA
     Maxmimum voltage on out line  25V
    16 digital input Maxmimum load of input line  5mA
    maximum voltage on input line  25V
     PC connection  Standard USB2.0

    7、Attachments

    MKX-V motion card

    1 piece

    Use wire 1 piece
    Driver disk 1 disk
    MACH3-USB trouble shooting 1 book
    MACH3 config and driver installation 1 book
    MKX –V user Manual 1 book
    Package box size 275*144*42mm
    weigtht 0.7KG







    More detail introduction,please walk to download center
