1、Applications

        WHB04B has 2 series：
           1、 WHB04B-4：support 4 axis with x,y,z,a
           2、 WHB04B-6：support 6 axis with x,y,z,a,b,c
       application on mach3 cnc system in windows platform.

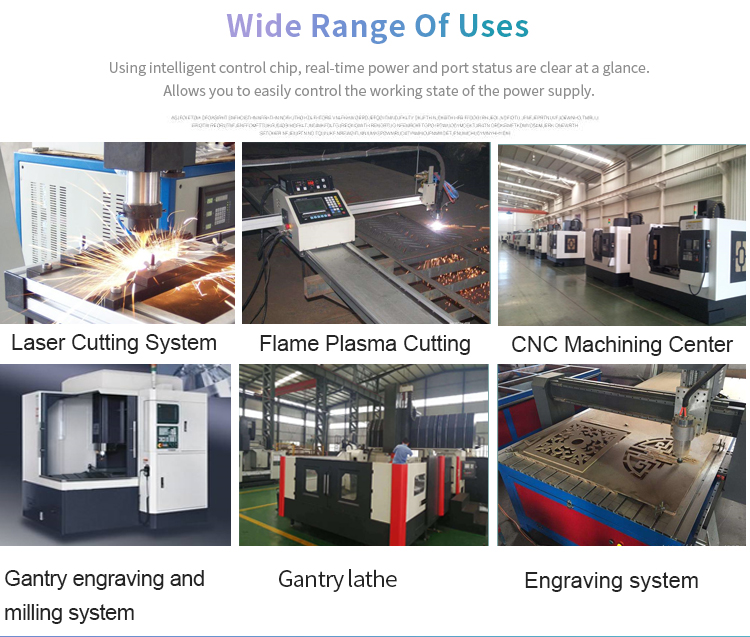

2、Application area

3、Product Overview

4、Key feature

1 .Auto Frequency Hopping When Noise.
Frequency band:433Mhz,ISM ,the output power up to10DB，High receiver sensitivity -98DB.
32 hopping channels，the channel frequency gap is 1Mhz.
the transmission is encrypted， auto build communication network and pair. auto hopping when noise.
32 sets of wireless MPG could be used at the same time in one room.
2、 LCD display
Display the X Y Z A B C axis work and machine coordinate data.
Display the spindle and feed speed.
The lcd display data with background light.
3 、Axis/Step band switch
To choose X/Y/Z/A/B/C axis or close all axis by axis switch,to choose jog step by step switch.
4、support 10 macro function button

5、General Characteristics

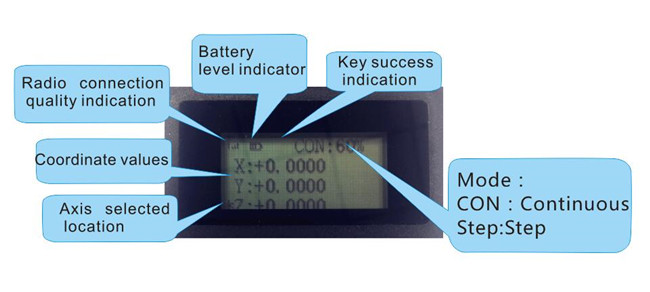

6、LCD Display overview

7、Funciton key descripiton

	RESET button		Stop button
	Start/Pause button		Macro-1/Feed+ button
	Macro-2/Feed- button		Macro-3/Spindle- button
	Macro-4/Spindle- button		Macro-5/M-HOME button
	Macro-6/M-HOME button		Macro-7/W-HOME button
	Macro-8/S-ON/OFF		Function button
	Macro-9/ probe-Z button		Macro-10 button
	MPG button		Step button
	Axis selection band switch		Selection speed

8、Attachments

More detail introduction,please walk to download center.
