MKSX-V

型号:MKSX-V
规格:133.7x75.5x14.2mm
市场价:0.00
优惠价:0.00
分享到:

分享到

  • 一键分享
  • QQ空间
  • 新浪微博
  • 百度收藏
  • 人人网
  • 腾讯微博
  • 腾讯朋友
  • 百度贴吧
  • 豆瓣网
  • 搜狐微博
  • QQ好友
  • QQ好友
    百度分享
  • 1、Applications

         MKSX-V has 2 series:
            1. MKS3-V:3 axis motion card.
            2. MKS4-V:4 axis motion card.
         works with Mach3 CNC system under all windows platform.


    2、Application overview

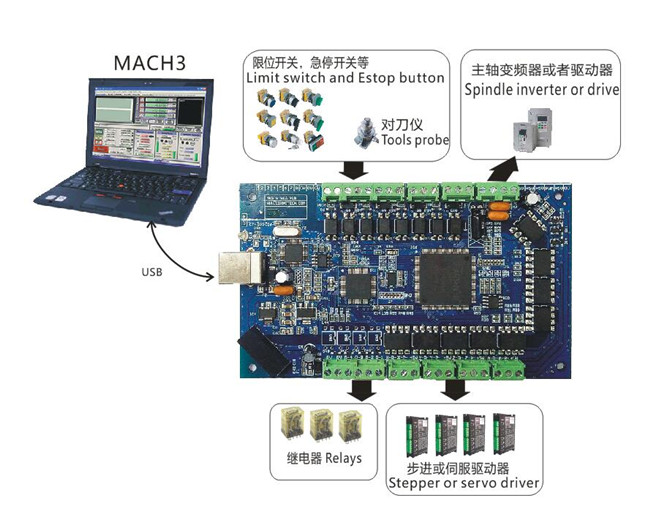

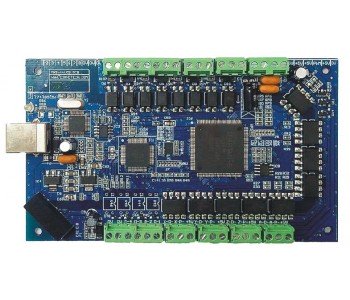

    3、Product overview

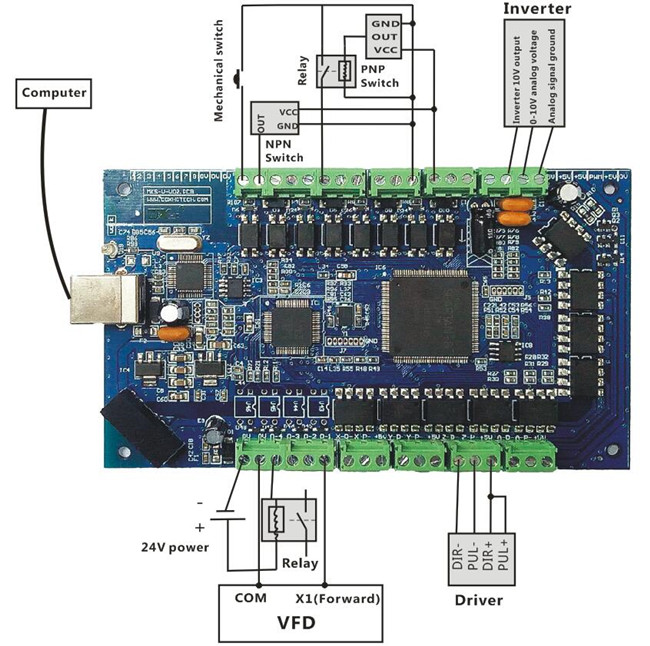

    4、Signal connection


    5、Key feature

    1. Support power-off resume function.
    2.Fully supporting all Mach3 versions
    3.Support 1.5 meters USB cable
    4.Supports Up 4-axis
    5.Maximum step-pulse frequency is 2000KHz
    6.Status indicator LED can be useful to show the USB connection, and working status by flashing.
    7.8 general-purpose input,4 output
    8.all IO-port isolation, interference, stable performance
    9.Full support for USB hot-swappable, the card is Monitoring USB connection status at any time.



    6、General Characteristics

    Parameter Description



    Axis drive control:



     Isolated oc output  Voltage:5V,maximum load :20A
     type STEP/DIR
     Maximum Step frequency  2000KHZ
     Number of support axis MKS3-V:3 axis
    MKS4-V:4 axis
    Spindle control  Analog output voltage  0-10V
     Digital PWM output  5V,1KHZ,fill factor:%1-100%
     STEP/DIR Minimum frequncy:15Hz
    Maximum frequncy:4KHz
    4 digital output  Maxmimum load of output line  50mA
     Maxmimum voltage on out line  25V
    8 digital input Maxmimum load of input line  5mA
    maximum voltage on input line  25V
    communication method USB 2.0

    7、Attachments

    MKSX-V motion card

    1 piece

    USB cable 1 piece
    Driver disk 1 disk
    MACH3 trouble shooting 1 book
    MACH3 config and driver installation 1 book
    MKSX –V user Manual 1 book
    Package box size
    weigtht



    More detail introduction,please walk to download center
